Manufacturer Of Tinned Copper Braided With Solder Block Or Water Block

• PACKING IN INDIVIDUAL POLLY BAGS
• SOLDER BLOCK / WATER BLOCK ON 25 MM AREA AT ONE END WITH A DISTANCE OF 60 MM TO 140 MM AS PER SIZES
• MATERIAL:-COPPER AS PER ASTM B-33

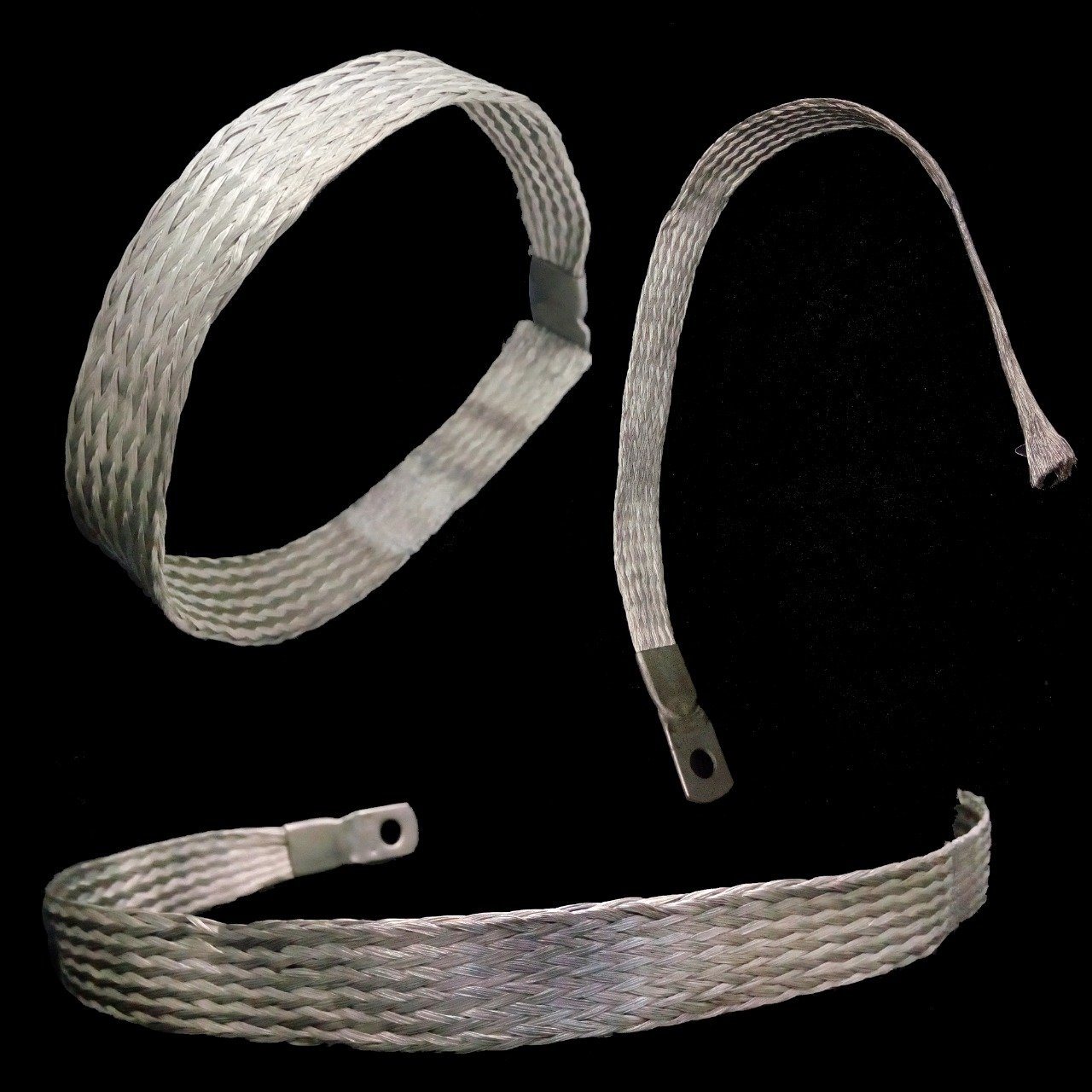

• TINNED COPPER FLAT BRAID WITH SOLDER BLOCK



NOMINAL CROSS SECTION	NUMBER OF STRANGE	NUMBER OF WIRE IN THE STRAND	WIRE MM	WIDTH OF THE BRAID	THICKNESS OF THE BRAID
10	24	21	0.16	14	1.5
16	36	22	0.16	20	1.8
25	36	34	0.16	22	2.5
35	36	48	0.16	25	3
50	48	52	0.16	33	3.2
70	48	73	0.16	40	3.5
120	48	125	0.16	55	4.5
